Polarization Axis Tester for Optical Industry According to International Standard ISO 12312-1

“Smart_Polar checks the Polarized Filters for SunGlasses, Masks and SkiGoggles in accordance to International Standards”

Smart_Polar is a complete and automatic polarization axis tester for SunGlasses with frame, Masks and SkiGoggles in accordance with the International Standard ISO 12312-1. The spectacles are placed into a structure that simulates a reference headform compliant with the Standard ISO 18526-4:2018 Type 1-M.

This polarization axis tester is a very fast instrument, with a prompt measurements at a record speed (just 1 sec.), that shows an immediate feedback on the test thanks to a simple « Pass / Fail » semaphore output. Smart_Polar provides accurate and repeatable measurements and showing the complete results with values on the screen view. The report also can be print or exported in excel and pdf files.

Smart_Polar is a fast, compact, rugged, accurate and extremely easy-to-use equipment, without any mechanical movement or adjustment, avoiding operator’s interpretation and influence, designed for hard industrial environment and heavy duty cycle use, perfect for massive production quality inspection close to the line control or at incoming review.

Its intuitive touch screen user-interface makes it easy-to-use even for unskilled workers and no requirements of specific skills to perform the tests.

Request for prices or a demoDownload brochure
Dimensions (mm) 860×320 H.250
Weight (kg) 20
Power Supply 110-240 Vac | 50-60 Hz
Power Consumption 2 A
Communication Interface USB 3
Case Black Opaque painted Aluminum
Software Interface Language: English
PC Software Backup USB stick containing the backup system
User Management User, SuperUser, Maintainer, Administrator
Data Report xlsx, xls, pdf
Print Report Windows installed Printer (optional pdf), xps
Statistical Analysis Ready to connect with SPC software

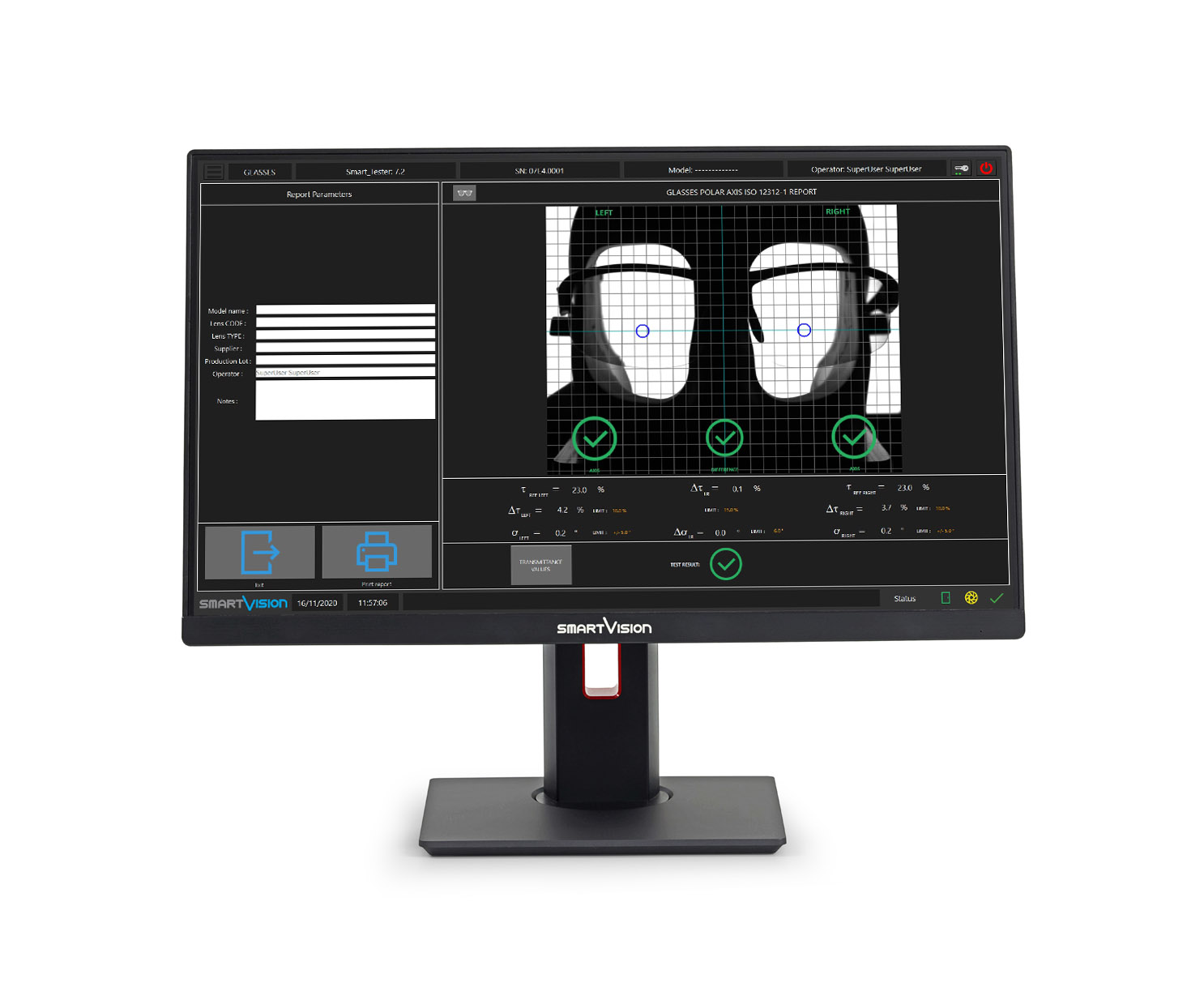

Smart_Polar_New_Pc_AIO
  • Powerful All-in-One PC
  • Full HD, 1920×1080 pixels
  • Height adjustable & Tilt swivel rotate position
  • Wireless Keyboard & Mouse
  • Genuine Windows 11 PRO 64-bit
  • USB Drive with Backup Software (bootable system startup)
  • Pre-installed TeamViewer app Support
Smart_Polar_Software
  • Easy to use with an intuitive GUI
  • Camera live view for precise positioning
  • Customizable setting parameters
  • Full automatic data report
  • Remotely managing Software Options
  • Upgradability for future Standards
  • Hardware License Key
Smart_HeadForm_SkiGoggle_tool
Smart_HeadForm + SkiGoggle tool
Mask_Holder
Masks_Holder
Smart_FootSwitch
Smart_FootSwitch
