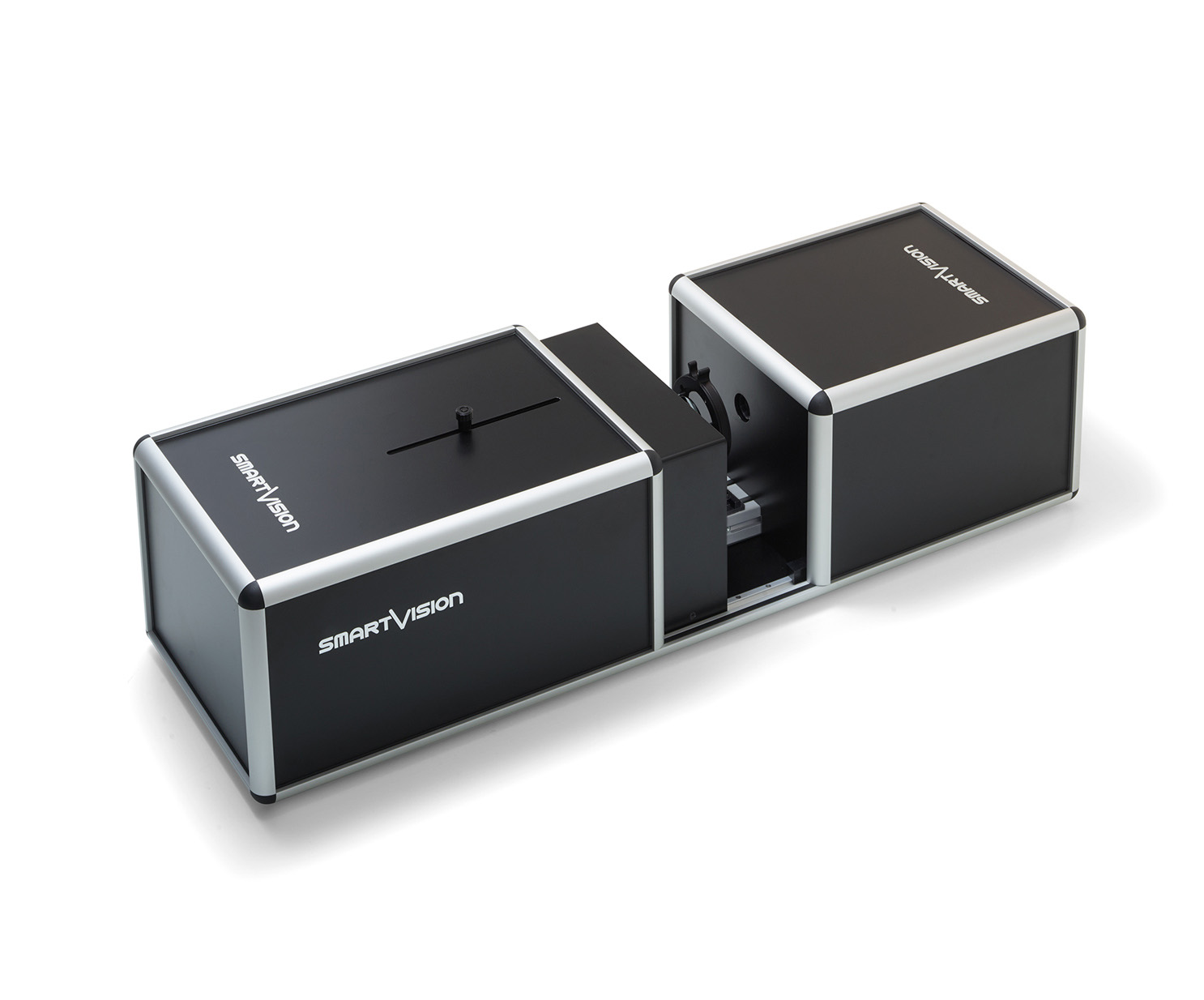

Smart_OptiBench
High-performance Digital Bench
“Smart_OptiBench automatically checks the Refractive Powers of SunLenses and Prismatic Imbalance of SunGlasses & SkiGoggles”
Smart_OptiBench performs fast and fully automatic tests equivalent to Telescope Method to check Optical Quality and Refractive Powers of SunLenses, SunGlasses with frame and SkiGoggles in a short time. This innovative System takes objective, accurate and repeatable high precision measures for any kind of Afocal Lenses, including Polarized Thermoformed and Mirrored Lenses, and it has a adjustable interpupillary distance.
An Easily and Quickly Configurable Instrument, thanks to three Dedicated Smart Fixing Tools interchangeable with each other, suitable for Unskilled Operators use. The Smart_OptiBench software check the measurements complies with the main International Standards and does not need input of T%. The intuitive and user-friendly graphical interface shows a simple « Pass / Fail » lamp output indicator avoiding operator’s interpretation and evaluation.
Smart_OptiBench is the only device which can determine the Optical Quality of the Lenses through a Sharpness Index based on MTF method (Optional) and to be completely compliant with International Standards and European Regulation (EU) 2016/425. Ideal for any environment, Easy to maintain, with Fast and easy update of all International Standards through Teleservice.
- Product Highlights
- Available Models
- Main Features
- Technical Specifications
- Optional Functions

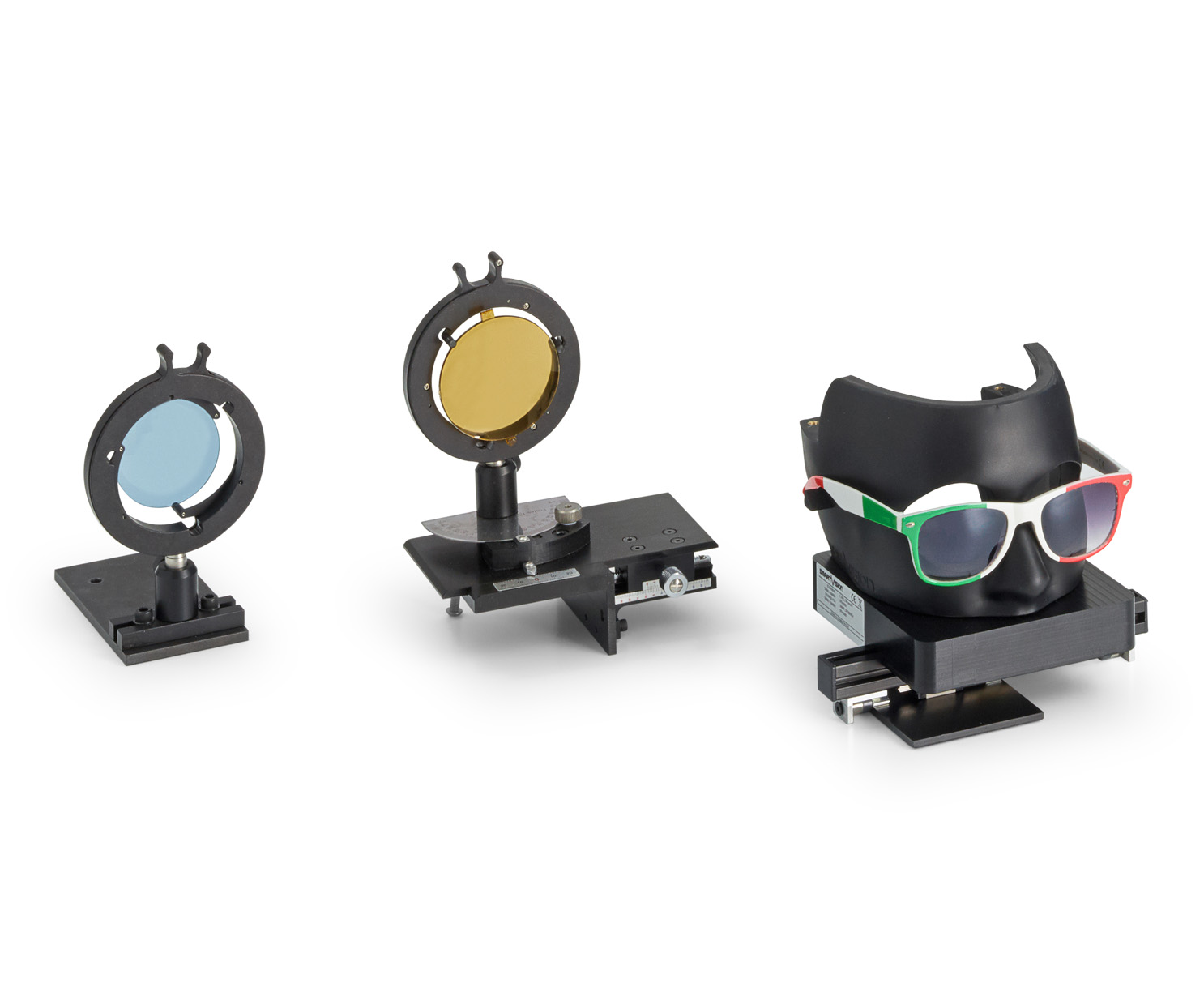

- Smart Tools
- Test Equivalent to Telescope Method
- Fully Automatic Test with Full Automatic Report
- Spherical, Astigmatic, Prismatic Power Measurement
- Spherical and Prismatic Balancing for SunGlasses
- Objective and Repeatable High Precision Measurement
- Optical Quality Measurement (Optional)

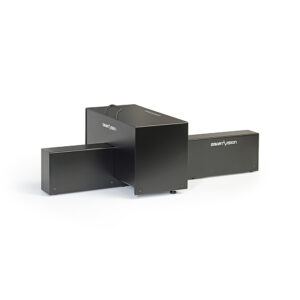

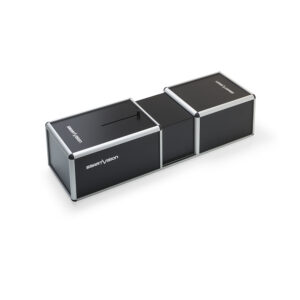

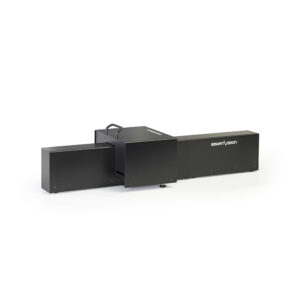

| Model | Smart_OptiBench | Smart_OptiBench (regular box) | Smart_OptiBench XXL |
| Image preview |  |
 |
 |
| Measurement Area (mm) | 20 | 20 | 20 |
| Scan Type | 2 Meridians Scanner or 360° | 2 Meridians Scanner or 360° | 2 Meridians Scanner or 360° |
| Communication Interface | USB 3 | USB 3 | USB 3 |
| Dimensions (mm) | 1060×400 H.270 | 1130×350 H.290 | 1130×560 H.380 |
| Weight (kg) | 27 | 26 | 30 |
| Case | Black Opaque painted Aluminum | Black Opaque painted Aluminum | Black Opaque painted Aluminum |
| Test equivalent to Telescope Method |
| Fully automatic test |
| Objective and repeatable high precision measures for all Afocal Lenses |
| Fast measuring time with full automatic data report |
| No need of T% input (to be measured with a different equipment) |
| Reliable measure for Polarized, Thermoformed and Mirrored |
| One unique instrument for both Adults and Kids Sunglasses |
| Adjustable interpupillary distance |
| Unique instrument for both SunGlasses and SunLenses (Combo Version) |
| Complete set of accessories to measure SunGlasses, Ocular and Masks of several size |
| Fast and easy update of all International Standards through Teleservice |
| Easy Maintenance |
| Analysis speed according to required precision |
| Measure Refractive Powers for Afocal Lenses: – Spherical – Astigmatic – Prismatic – Spherical and Prismatic Balancing (for SunGlasses) |
| Compliance with main International Standards: EN 166, EN 174, ISO 12312-1, Z94.5, Z94.3, AS/NZS 1067, AS/NZS 1337, ANSI Z80.3, ANSI Z87.1, ASTM F659, JIS T8147 |
| Quality of the lens check (Optional): – Sharpness Index: based on MTF (Modulation Transfer Function) method |
| Scan Type | 2 Meridians Scanner or 360° |
| Measurement Area (mm) | 20 mm |
| Dimensions (mm) | 1060 x 400 x 270 mm |
| Weight | 27 kg (excluding PC) |
| Operating temperature | +10° to 40° C |
| Storage temperature | -20° to 60° C |
| Relative humidity | < 80% |
| Power supply | 110/230 Vac | 50/60 Hz |
| Power consumption | 2 A (12 Vcc Included) |
| Communication interface | USB 3.0 |
| Case | Black Opaque painted Anodized Aluminum Case |
| PC Device | Powerful All-In-One touch screen FULL HD PC with Windows 10 PRO 64-bit, monitor resolution 1920×1080 |
| PC Backup | USB stick containing the backup system (bootable system startup), |
| interface Language | English |
| Data Report | .xls, .pdf |
| Print Report | Windows installed Printer (optional pdf), xps |
Smart_OptiBench is the first Optical Bench that, in addition to measuring Refractive Powers according to International Standards, carries out an assessment of perception of the contrast as required by new European Regulation Reg. (EU) 2016 / 425. Test Methods established by the current harmonized European Standards do not fully cover all the essential requirements described by new regulation.
“Annex II – Essential health and safety requirements
Clause 3.9.1 Non-ionising radiation
PPE designed to prevent acute or chronic eye damage from sources of non-ionising radiation must be capable of absorbing or reflecting the majority of the energy radiated in the harmful wavelengths without unduly affecting the transmission of the innocuous part of the visible spectrum, the perception of contrasts and the ability to distinguish colours where required by the foreseeable conditions of use.
31.3.2016 L 81/82 Official Journal of the European Union EN (Abstract)”
Harmonized Standards guarantee the presumption of compliance with the EU Regulation only for the characteristics specifically considered by the Standard. Therefore, the producer must also prove that the essential requirements included in the Regulation have been satisfied, even if not included in the Standards.

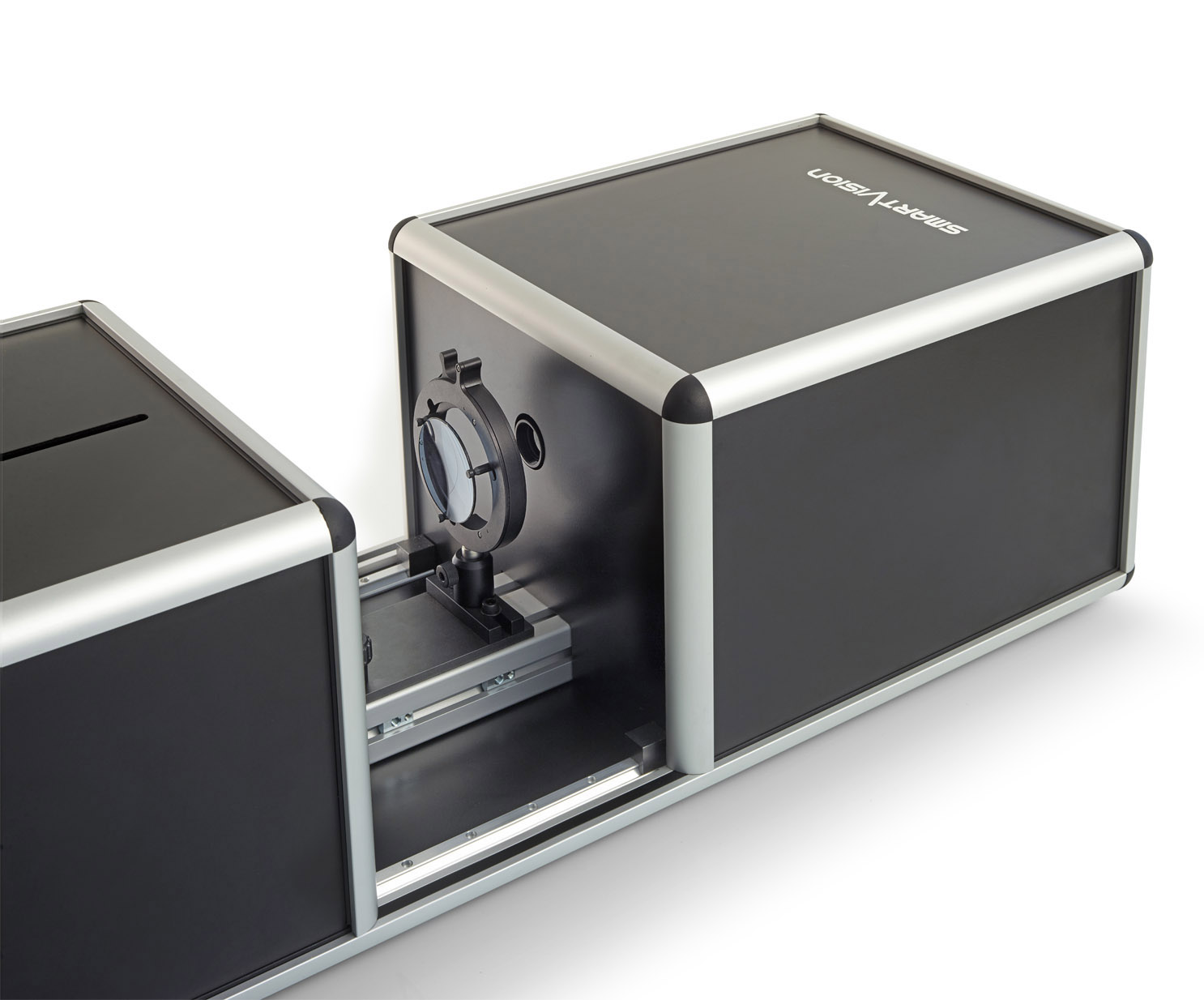

Lens_Holder
Lens_Holder Enhanced

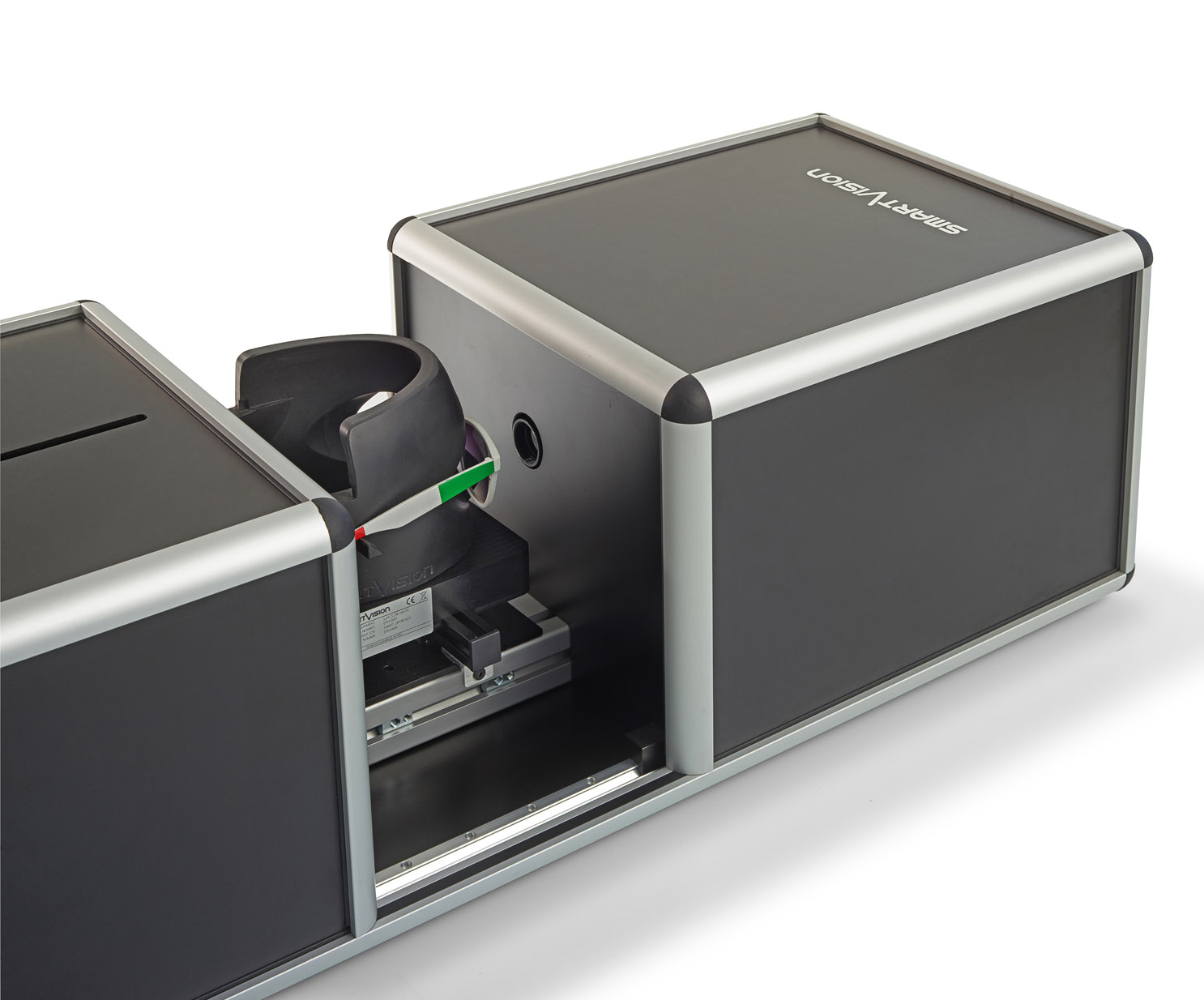

Smart_HeadForm
