Smart_Color_Pro

Smart_Color_Pro

Spectrophotometer for Quality Control of Lenses, Eyeglasses & Visors for Sun, Sports & Safety

“Smart_Color_Pro allows Automatic, Objective, Easy & Fast Color Differences and International Standard Compliance Tests”

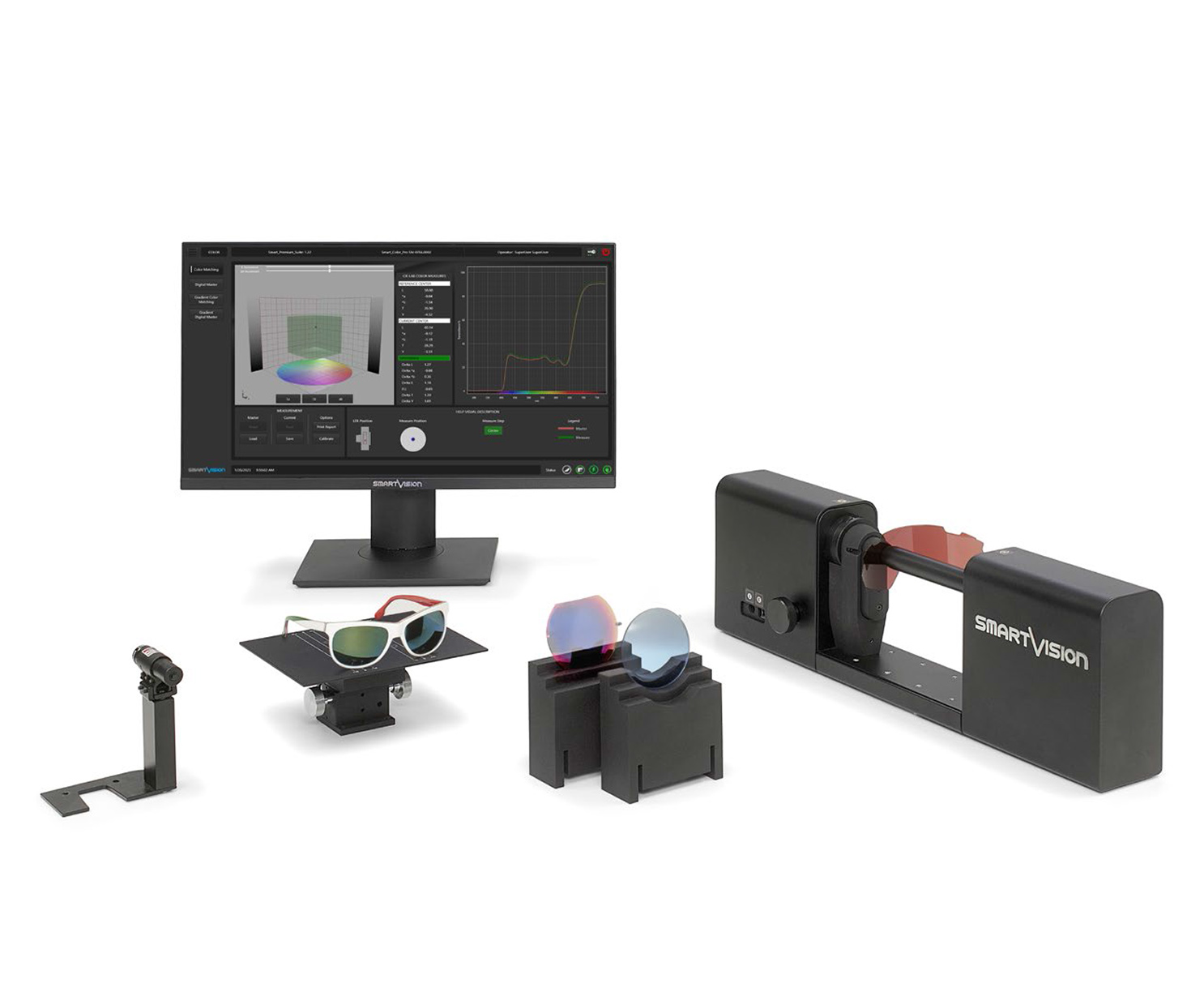

Smart_Color_Pro is the advanced and unique technical evolution of spectrophotometers, it is specifically designed and optimized for quality controls of: Lenses, Eyeglasses, Masks and Visors, for Sun, Sports and Safety use.

The innovative Smart_Premium_Suite software interface, designed by SmartVision, guarantees measurements at a record speed (just 1 second) and improves the usability by the operator.

Smart_Color_Pro checks the transmittance properties according to all uploaded International Standards, the Yellow Index and the Color Differences compared to a master lens. Several International Standard Test are optionally available to meet your specific needs.

The instrument immediately shows a « Pass / Fail » output, with no contribution nor interpretation by the operator and no requirements of specific skills to perform the tests. State-of-the-art user features allow an easier management of production quality controls, with new optional advanced reports: Master Technical Report, Benchmark Report and Process Control Report.

The innovative improved design of the device allows fast and firm grip of the lens and accurate positioning, suitable also for glasses with frame, masks, goggles, visors and safety glasses.

No need of mechanical movements nor to dismount or cut the lenses to fit the device. A wide range of Software Options is available to perfectly suit every specific need.

询价或申请演示下载小册子
  • Individual « Pass / Fail » lamp signal indicator for every single International Standard
  • Customizable setting of accepted tolerance of color differences
  • Digital Color Master Item Reference Management (Save & Name, Load Model)
  • Points out the reason of a failure
  • One shot color analysis
  • Display 3D graphics to view the color space, parallelepiped of acceptability and measured points
  • Spectrum Stability Continuous Control (Allows more accurate measurement)
  • Lamps Warm-up Dynamic Control (Warm up time will be minimum possible allowed by the hardware)
  • Auto-calibration of the instrument (No visible calibration and no interruption of the measuring cycles)
  • Display of transmittance curve with color indication for each frequency of light, zoom, pan and display of transmittance values for single wavelength
  • Full automatic Technical Data Sheet (International Standards and Color report) reports on PDF or direct print
  • Spectral transmittance values file output
  • Full automatic Production Batch in Excel file
Dimensions (mm) 600 x 130 x 186 (lateral knobs included)
Weight (kg) 7,80 (excluding PC, tools and cables)
Power Supply 110-240 Vac | 50-60 Hz
Power Consumption 2 A
Communication Interface USB 2
Case Black Opaque painted Aluminum
Software Interface Multi Language Dynamic Setup
PC Software Backup USB stick containing the backup system
Data Report xlsx, xls, pdf
Print Report Windows installed Printer (optional pdf), xps
Statistical Analysis Ready to connect with SPC software
Online Support Pre-installed TeamViewer app Support
Easy_Spectro_RX_Pc_AIO
  • Powerful All-in-One PC
  • Full HD, 1920×1080 pixels
  • Height adjustable & Tilt swivel rotate position
  • Wireless Keyboard & Mouse
  • Genuine Windows 11 PRO 64-bit
  • USB Drive with Backup Software (bootable system startup)
  • Pre-installed TeamViewer app Support
Smart_Premium_Suite
  • Easy to use with an intuitive GUI
  • T% graphic with color indication
  • Live 3D color space visualization
  • Customizable setting parameters
  • Extended User Management Feature
  • Lamps Warm-up Dynamic Control
  • Spectrum Stability Continuos Control
  • Full automatic data report
  • Remotely managing Software Options
  • Upgradability for future Standards
  • Hardware License Key
Reach Excellence in Quality Control with SmartVision’s Technology!
