Smart_Shape_Premium 可以对镜片边界进行自动对齐,高精度分析,自由缩放等操作,并同标准原始镜片的边界对比,确定差异为位置。

Smart_Shape_Premium 提供客观、可重复性的测量方式,简单的合格/不合格信号输出,没有操作员对测量的干预,确保测量的全自动,并将所有的测量结果自动输出为各种可兼容文件,如Excel格式文件(csv,tsv,txt),打印或输出pdf文件,并可输出图像文件。

Smart_Shape_Premium 是一款快速的、紧凑的、稳定的、高精度的、操作及其简单的测量仪器,适合于恶劣的工业生产环境及繁重的检测任务。

Main Features Related Benefits
Optical contactless system Objective measurement
Independent from operator’s skills
Increase the quality of controls
Specifically designed for lenses, frames, masks, visors, hinges, rods, etc.
Protected analysis chamber No external light nor dust influence
Easy sample positioning
Static equipment, without moving parts Mainteinance free
No need for re-calibration
Accuracy independent from sample’s dimension
No need of manual collimation, nor focus
Rugged, Compact & Fanless Can be used in any industrial environment
Can be used in a lab
Save space on site
Flexible measuring software Possibility to measure a, b and perimeter even for non-circular lenses
Slots, holes and loops are promptly detected
Further measurements can be added in an existing program
User-defined parameters and process-related dimensions are gaugable
Full automatic reporting No mistakes in transcription,
Time-saving in creating reports
Continuous database feeding
Telecentric optics High contrast images
No distortion
No perspective effects caused by inappropriate positioning
Less sensitive to samples’ curvature
Fixed FoV Accuracy independent from sample’s dimension
Faster measurements
Pattern recognition Accepts random positioning of the part
Multiple parts can be analysed at once
Prevents the operator from using the wrong program
Smart_Profile_Matching Automatic Profile Fit
Master Creation from physical samples or DXF
Optimal for Reverse Engineering
Profile matching between current and master shape

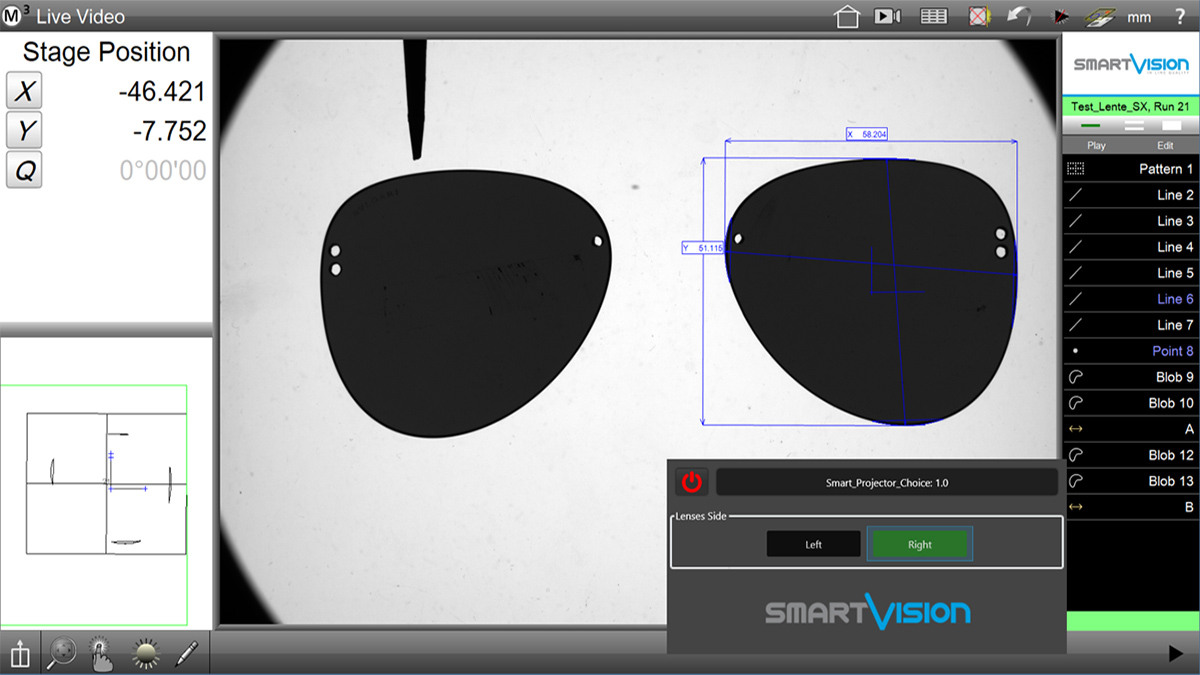

Smart_Mirror Symmetric samples can be checked using one program
Ideal for controlling lenses and similar products
Smart support No need of expensive on-site service
Available Support in short time in all the World by TeamViewer app
Online operator training
Easy setup of SW updates and upgrades
External PC with Win10 Pro Worldwide known Windows environment eases operator’s approach
If SW/HW problems no need to open the instrument,only send the PC
Made in Italy High Level of Quality and Innovation
Available Models Smart_Shape_Premium Smart_Shape_Premium XXL
Field of View3 (FoV) (mm) 168×113 200×150
FoV Type Rectangular with vignetting Rectangular with vignetting
FoV Diagonal (mm) 195 250
FoV Area (mm2) 18500 30000
Measuring Chamber5 (mm) 250×330 H.405 419×456 H.475
Repeatability4 ±1.5 μm ±5 μm
Accuracy4 ±8 μm ±20 μm
Diascopic Light1 Directional Directional
Layout Vertical Vertical
Light receiving lens Telecentric lens Telecentric lens
Dimensions (mm) 335×380 H.1255 685×510 H.1813
Weight (kg) 40 140

1 Diascopic Light: Standard Directional led backlight.
3 Standard models – other custom FoV available on request.
4 Precision of measurement (±μm) of a line, obtained measuring a specific calibration target located approximately in FoV center, best
focus position, at 25° C ±1°.
5 The dimensions of the measuring chamber are not the dimensions of the Field of View, therefore they have not to be considered as test area.

Operation ambient °C +10 to +40°C
Power supply 110-240 Vac | 50-60 Hz
Consumption 2 A
Measurement points 16000 features max
Pattern search XYѲ (accepts random positioning)
Tolerance Angle, angularity, area, circumference, concentricity, diameter, flatness, form, length, parallelism, perpendicularity,
radius, roundness, runout, straightness, symmetry, true position, width, XY position.
SmartVision PC Device Powerful All-in-One PC, FULL HD touchscreen, Monitor resolution 1920×1080, Windows 10 PRO 64-bit
Statistical Analysis Ready to connect with SPC software
CAD export dxf file with nominal values and tolerance
CAD import dxf file for profile match, nominal values and tolerance
Data Report xlsx, csv, tsv, txt
Print Report Windows installed Printer (optional pdf), xps
User account control Supervisor, Users 1 to 20 (with password login and editable rights)
Multi language interface English, German, Spanish, French, Italian, Portuguese, Russian, Chinese, Japanese, Polish, Czech, Romanian.
All languages are editable.

• Multi touch-screen software
• Automatic feature recognition

• Automatic data report

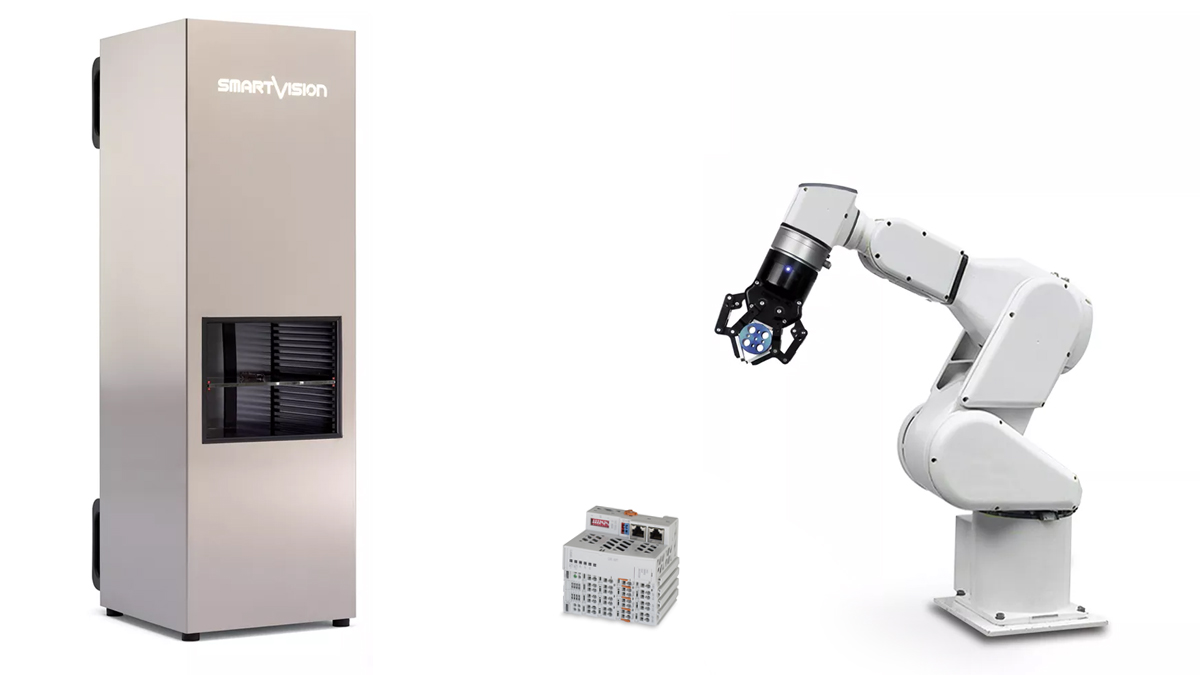

A complete solution for automated Quality Control Process

One program for check two symmetric samples
