Smart_Projector by SmartVision is the first and unique instrument designed to perform a complete and automatic dimensional check of any part easily and fast.
Smart_Projector
用于微小零件检测的影像轮廓测量仪
“This Smart_Projector_Ruby 是测量手表零件等微小零件的完美解决方案”

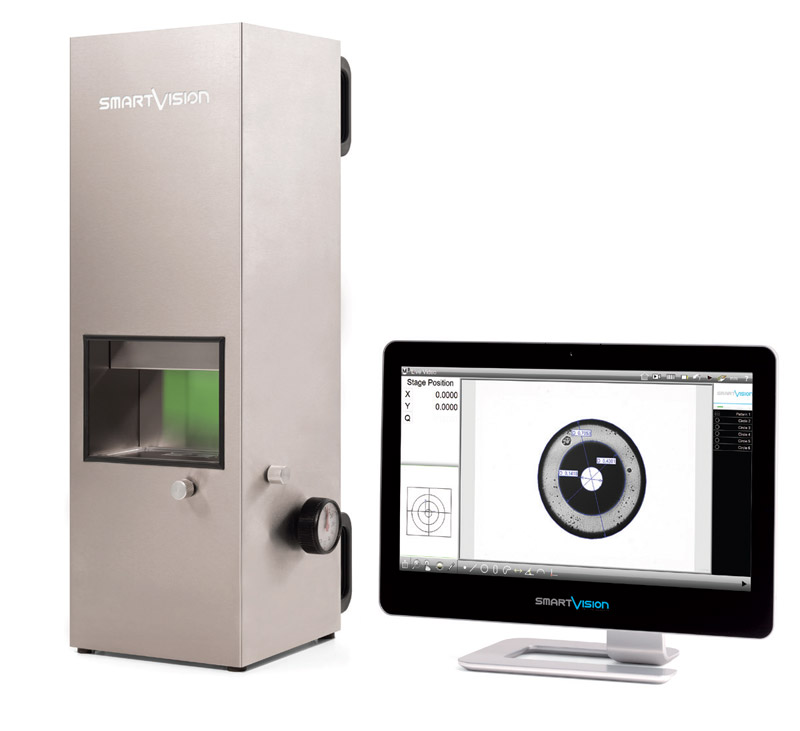

Revolutionary digital evolution of traditional profile projector and micrometer caliper, it allows to check an unlimited number of quotas per item in just few seconds, with no need for part alignment, no manual collimation nor focus and without any moving part inside the equipment.
Smart Projector provides objective and repeatable measures and signals a simple Pass / Fail semaphore output, with no contribution nor interpretation by the operator, ensuring a full automatic gauging and reporting of all checking activities in compatible excel files (csv, tsv, txt), prints (or pdf) and image files.

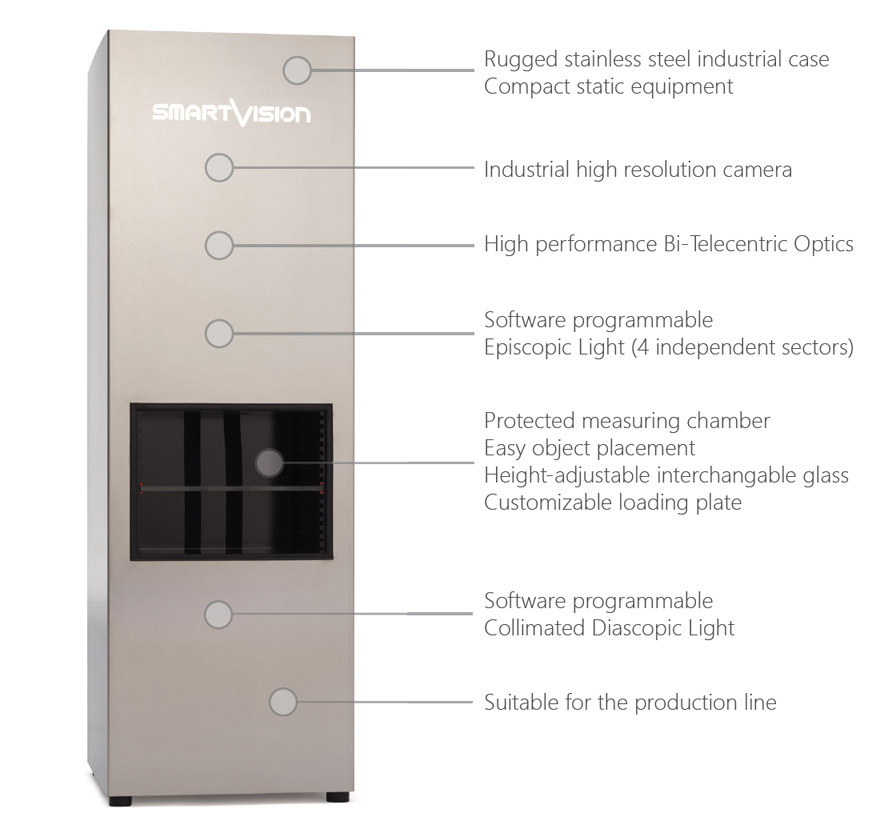

SmartProjector is a fast, compact, rugged, static, easy to use and easy to program equipment, designed for harsh environment and heavy duty cycle use.
PRODUCT HIGHLIGHTS
- Specifically suited for massive (production) quality inspection, in-line control, incoming inspection
- Eliminates subjectivity and errors of operator-based gauging
- Increases number of quotas and quality check rate, up to 16000 checking features in a few seconds
- Performs full automatic reporting and SPC (Min, Max, Range, Average, Std Dev, 6 Sigma)
- Designed for in-production massive use
- Suitable for unskilled operators use
- Flexible investment with a fast Return on Investment
- Reduces time and costs of controls
LARGE RANGE OF AVAILABLE MODELS
 |
 |
 |
 |
 |
 |
 |
| WORKING AREA DIMENSION (mm) |
 |
 |
 |
 |
 |
 |
| FoV (mm) |
5.6 x 4.2 | 22 x 16 | 48 x 34 | 95 x 68 | 145 x 105 | 195 x 140 |
| FoV Diagonal (mm) |
7 | 27 | 59 | 117 | 179 | 240 |
| FoV Area (mm2) |
23.5 | 352 | 1632 | 6460 | 15225 | 27300 |
| Camera (Mpixel) |
5 | 5 | 10 | 10 | 10 | 10 |
| Diascopic Light | Collimated | Collimated | Collimated | Collimated | Standard | Standard |
| Episcopic Light | – | – | – | Yes | Yes | – |
| Field of View (FoV)3 (mm) | 5.6 x 4.2 | 22 x 16 | 48 x 34 | 95 x 68 | 145 x 105 |
| FoV Diagonal (mm) | 7 | 27 | 59 | 117 | 179 |
| FoV Area (mm2) | 23.5 | 352 | 1632 | 6460 | 15225 |
| Measuring Chamber (mm)5 | 5 | 5 | 10 | 10 | 10 |
| Depth of Field (mm) | Collimated | Collimated | Collimated | Collimated | Standard |
| Camera (M pixel) | – | – | – | Yes | Yes |
New Generation Software:
TOUCH & MEASURE!

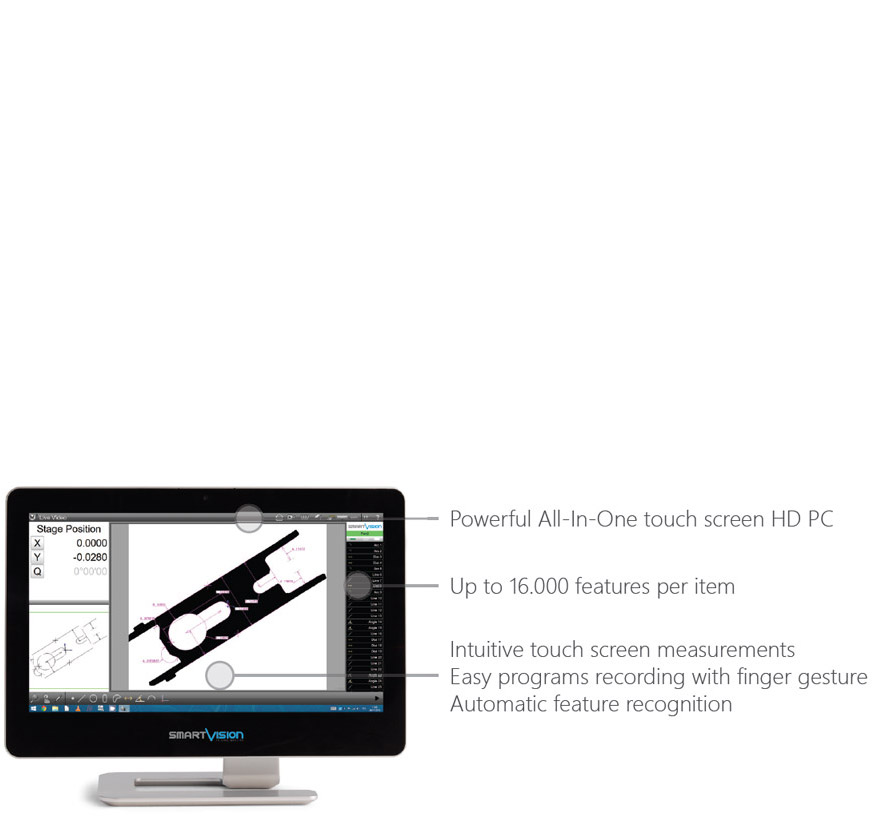

• Multi touch-screen software
• Automatic feature recognition
• Software programmable light
• Front / Back / Diffused light
• Automatic data report
• CSV / TSV / TXT / DXF / PDF
